EC Compact Geared Motors
Type UECG

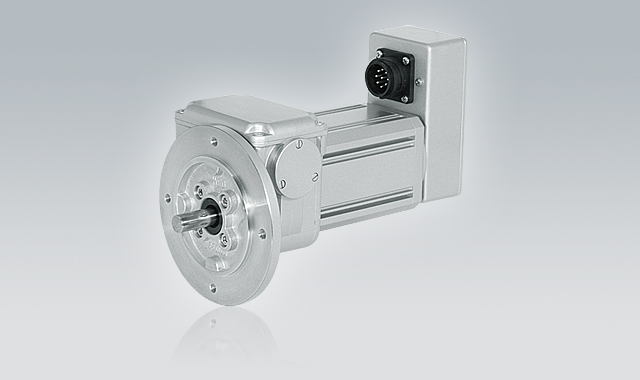

EC Compact Geared Motor UECG 303 TH with Double Worm Gear Unit GF 23 lupe

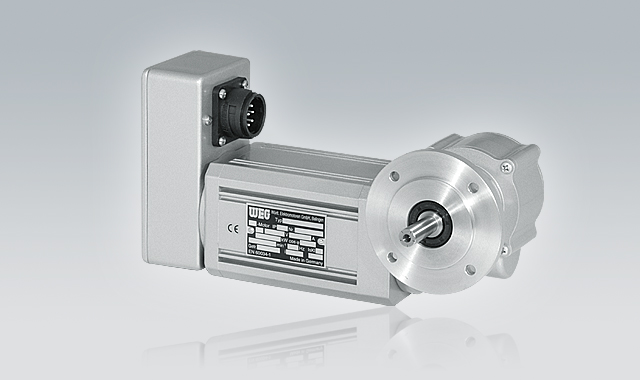

EC Compact Geared Motor UECG 303 TH with Single Worm Gear Unit GF 126 lupe

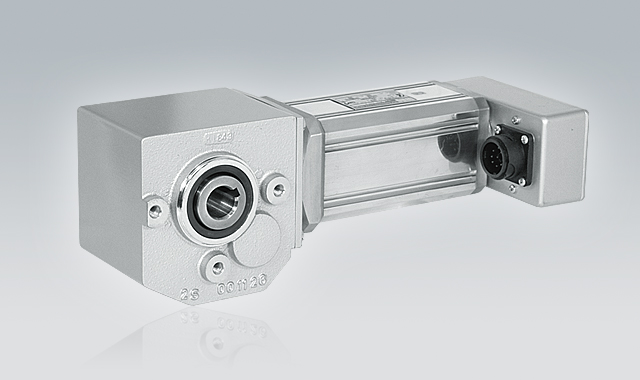

EC Compact Geared Motor UECG 313 TH with Worm-Spur Gear Unit ZB 45 lupe
Single Worm Gear Units Type 12, 13, 14, 15
Voltage 24 V DC
Power 60 - 150 Watt
Motor Speed 3000 min-1
Connection Connector socket
Type of protection IP 54
Ratios Typ 12 - 5:1 up to 55:1
Hollow Shaft Worm Gear Units Type 12
Voltage 24 V DC
Power 60 - 150 Watt
Motor Speed 3000 min-1
Connection Connector socket
Type of protection IP 54
Ratios by Hollow Shaft Typ 12 - 12:1 up to 50:1
Double Worm Gear Units Type 23, 24
Voltage 24 V DC
Power 60 - 150 Watt
Motor Speed 3000 min-1
Connection Connector socket
Type of protection IP 54
Ratios Typ 23 - 25:1 up to 4200:1
Worm-Spur Gear Units Type 45, 48
Voltage 24 V DC
Leistung 90 - 150 Watt
Power 3000 min-1
Connection Connector socket
Type of protection IP 54
Ratios Typ 45 - 25:1 up to 375:1
Hollow Shaft Worm-Spur Gear Units Type 45
Voltage 24 V DC
Leistung 90 - 150 Watt
Power 3000 min-1
Connection Connector socket
Type of protection IP 54
Ratios by Hollow Shaft Typ 45 - 25:1 up to 375:1
